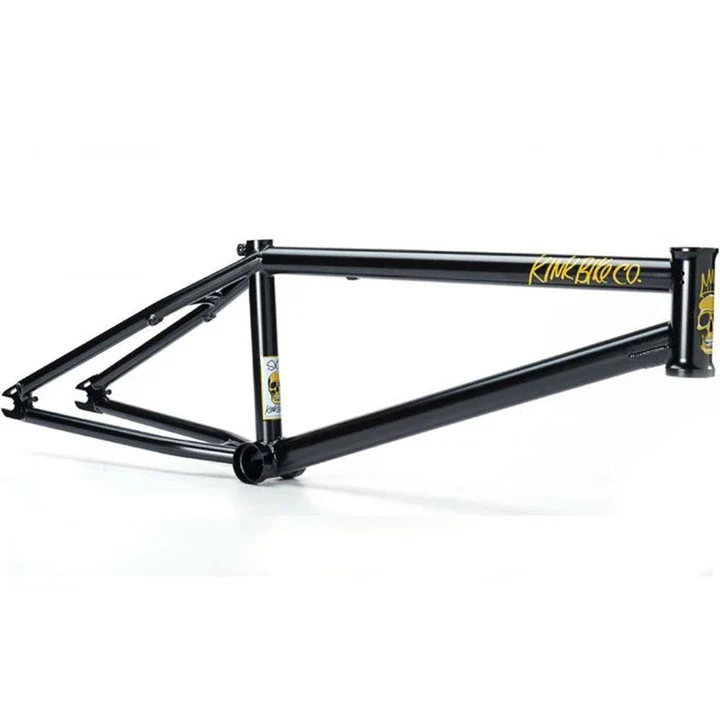

Kink BMX SXTN Frame 20.5″ - Ed Black

We worked closely with Sean Sexton to create his version of the perfect frame, from the geometry to the colors. The SXTN frame includes some really unique features like it’s hollow invest cast dropouts with integrated chain tensioners, and custom Arizona state flag inspired invest cast seat stay bridge. The oval downtube looks great and adds additional dent resistance to the 100% 4130 chromoly tubing, that is also used throughout the frame. The EBS removable brake mount system means the frame both looks and functions great, with or without brakes.



Features:

• Toptube Sizes: 20.5”, 20.85”, 21”
• Chainstay Length: 13.65" Slammed
• Bottom Bracket Height: 11.75"
• Standover Height: 8.5"
• Headtube Angle: 75°
• Seattube Angle: 71°
• Material: 100% Seamless Sanko 4130 Chromoly Tubing
• Headtube: Integrated Campy Spec
• Dropouts: Hollow Investment Cast with Integrated Chain Tensioners
• Bottom Bracket: Internally and Externally Machined Mid Size BB
• Braking: Removable EBS Brake Mounts
• Embossed Downtube Gusset
• Widened Stays for Big Tire Clearance
• Integrated Seat Post Clamp
• Oval Downtube for Improved Dent Resistance
• Weight: 4lb 14oz (20.5")
